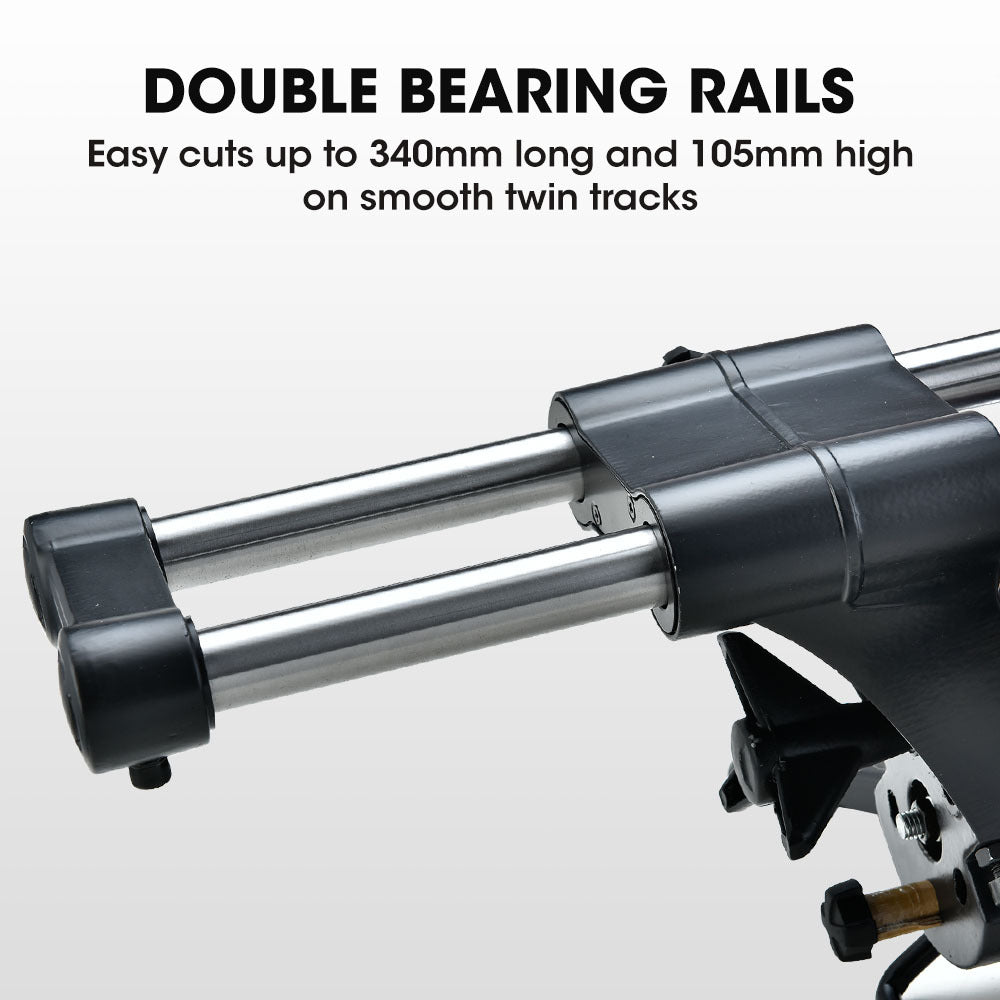

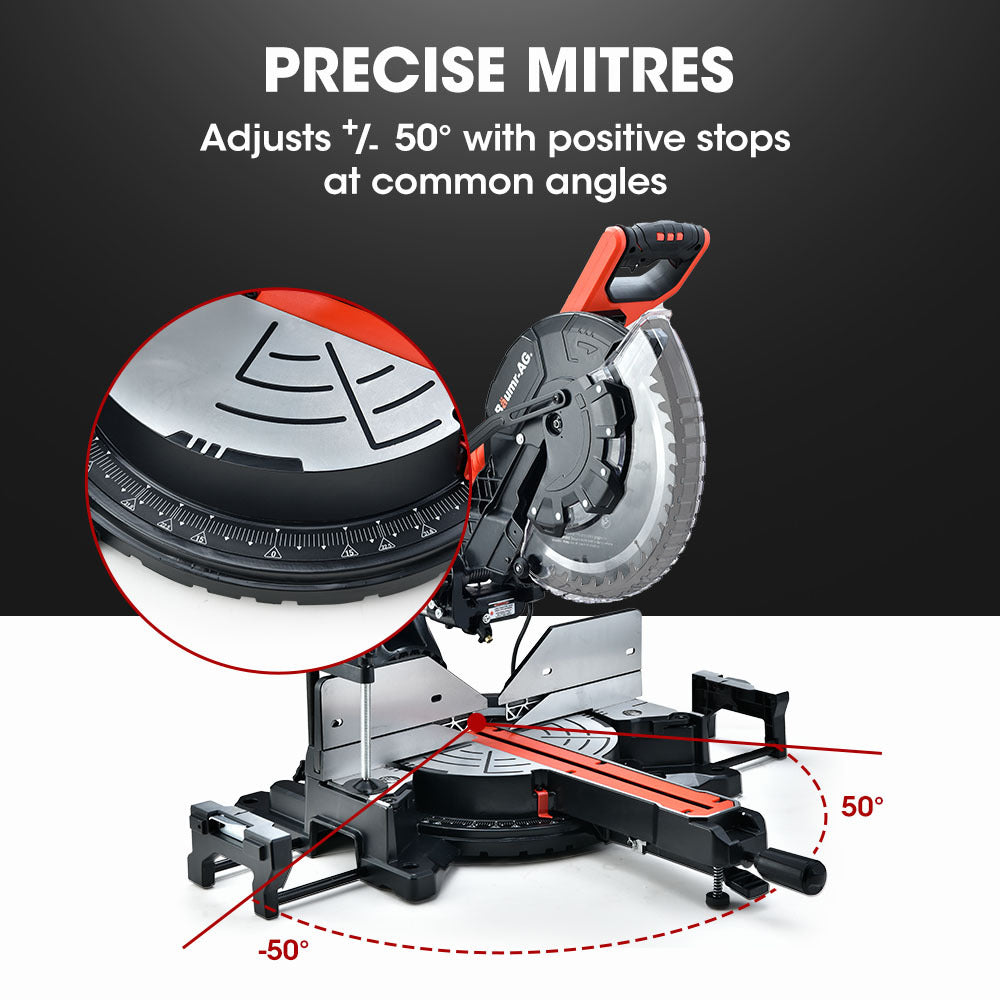

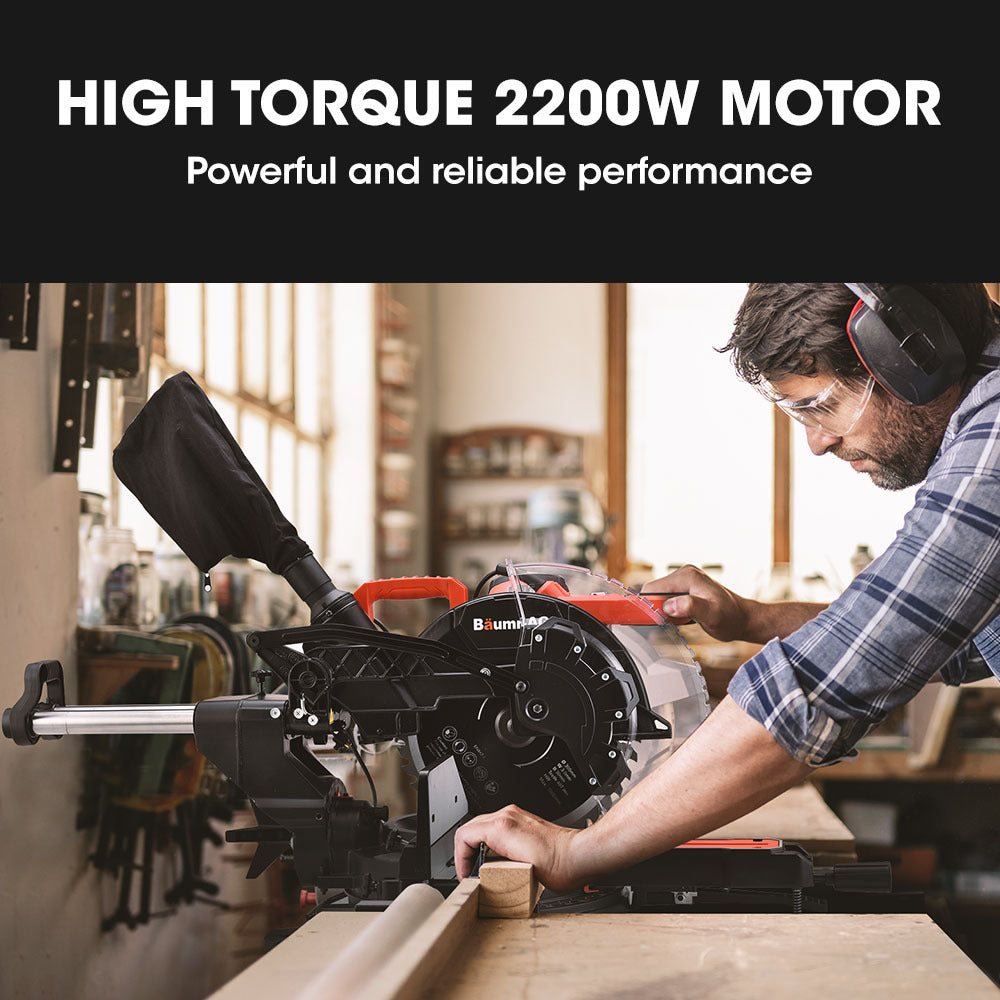

The Baumr-AG DBR-305 Dual Bevel Compound Sliding Mitre Saw boasts a powerful 2200W motor. Spinning at 5000rpm it drives a 12 inch (305mm) tungsten carbide tipped blade for fine and perfectly flush cuts. The dual bevel head allows you to make complex compound cuts quickly and easily with fewer stock adjustments. The 13.5 inch (340mm) reach of the double bearing twin rail allows you to perform large cross cuts with ease, and has an ultra smooth sliding action. The work table gauge has accurate reference marks to assure your Dados, bevels, and mitres match perfectly up to ±50°. The adjustable depth limiter allows the proper mitre, bevel, or groove for complex compound cutting. The DBR-305 even has a built-in laser guide for absolute precision!

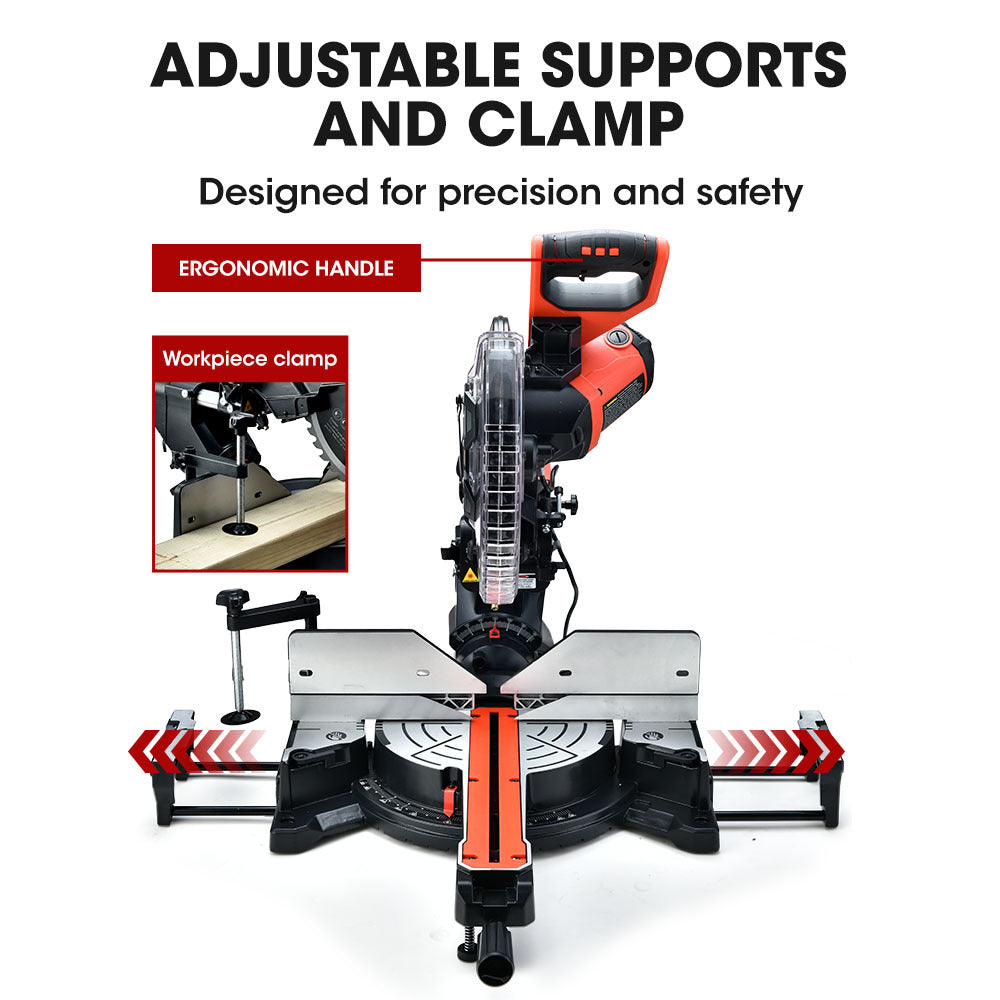

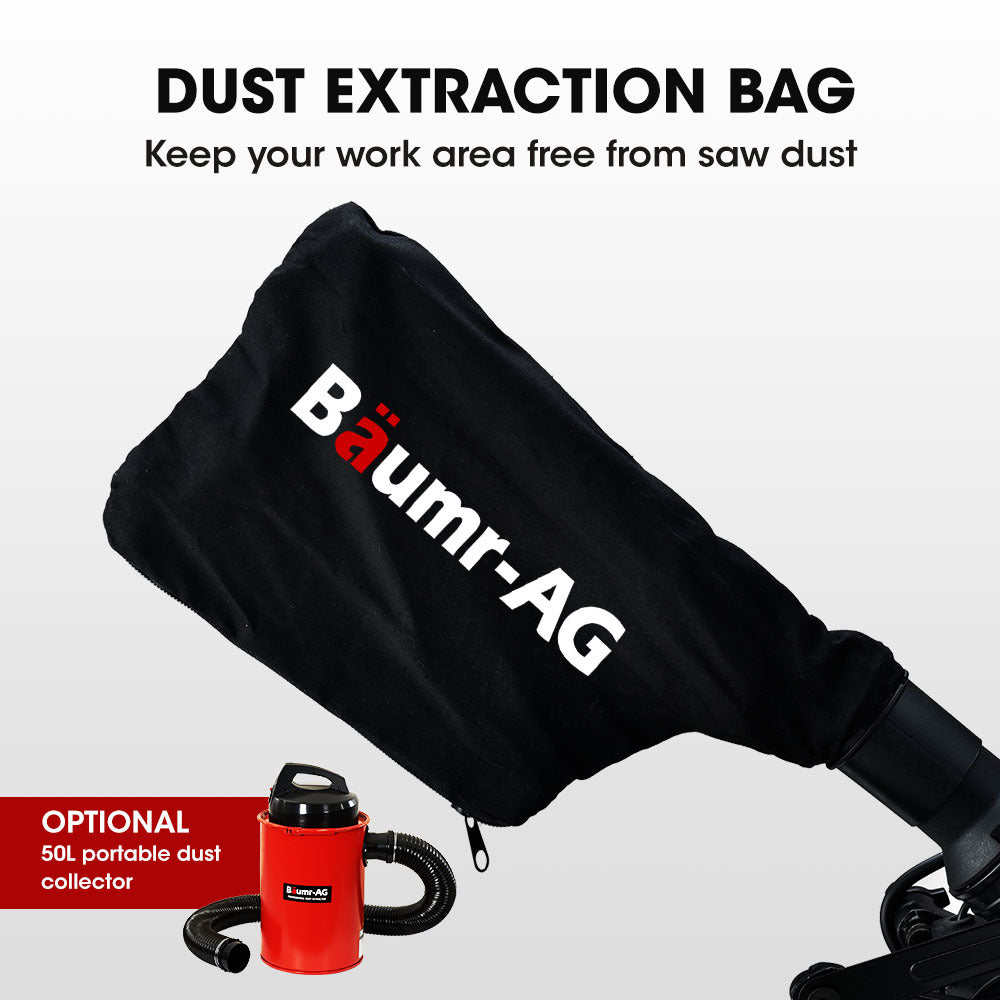

The Baumr-AG DBR-305 cast aluminium base, extendable work table supports and securing clamp make it simple and safe to keep your workpiece secure and in place. The DBR-305 drop saw comes complete with a sawdust collection bag, and gives you the option of attaching the Baumr-AG BM-DD5 vacuum for maximum sawdust extraction and collection.
You can mount the DBR-305 on a Baumr AG custom designed purpose built mitre saw stand or secure it to your bench. The DBR-305 also has a quick release table, the blade and guard lock in place, making it safe and easy to transport to your worksite.
The Baumr-AG DBR-305 is unrivalled in quality, features and its value. It is the ultimate bevel saw, box saw, mitre saw, and drop saw. There is no doubt that the features packed into this robust, heavy duty machine are industry leading. The DBR-305 12 inch (305mm) Dual Bevel compound mitre saw makes the cut, everytime!
Specification
- Brand: Baumr-AG
- Model: DBR-305
- Rated power: 2200W
- No-load speed: 5000 rpm
- Blade diameter: 12 inch (305mm)
- Blade teeth: 40T
- Swivel range: ±50°
- Bevel tilt range: ±45°
- Cutting Capacity:
- 0°×0°:340×105mm,
- 45°×0°:235×105mm,
- 0°×45°:L 340×60mm, R 340×40mm
- 45°×45°:L 235×60mm,R 235×40mm
- Laser Class: 2
- Input voltage: 220-240V / 50Hz
- Power Plug: Australian Standard
- Minimal Assembly required
- User Manual is accessible online
IN THE BOX
- 1 x Baumr-AG 2200W Compound Mitre Saw
- User Manual is accessible online
SIZE WEIGHT
- Product Dimensions (W x D x H): 109 x 111 x 73cm
- Product Weight: 22kg
- Carton Dimensions (W x L x H): 57.5 x 98.5 x 37.5cm
- Carton Weight: 26kg
SKU: SAWMITBMRA30DR
