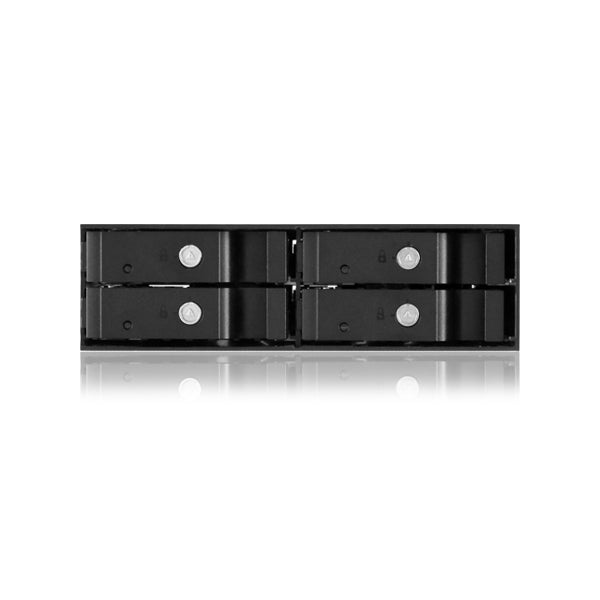

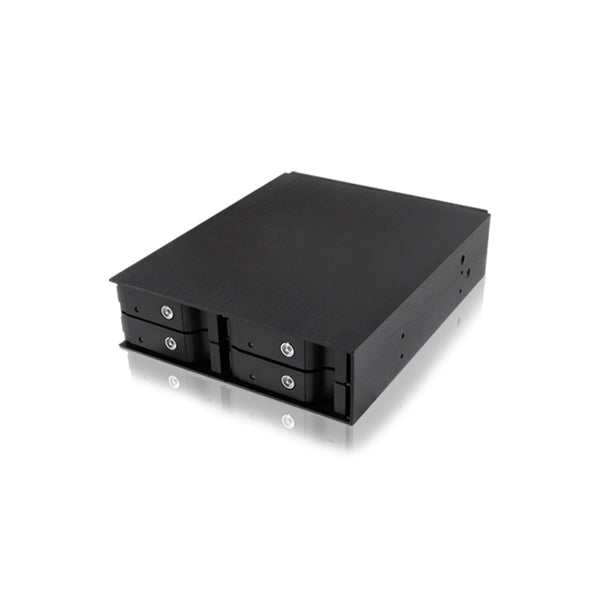

ICY BOX (IB -2240) Back Plane for 4 x 2.5 Inch SATA/SAS HDD/SSD

HDDs in the 2.5 inch form factor are getting more and more popular as their storage capacity is growing. It is only consequent to employ them in servers. That's why ICY BOX offers a backplane that fits into a single 5.25 inch unit and is for four 2.5 inch SAS/SATA HDDs or SSDs. The height of the HDDs may even be 15 mm, for greatest storage capacity.

This ICY BOX works reliably even with huge amounts of data being transferred. That's a great recommendation for the hard duty in RAID systems. Accordingly demanding is the layout of the cooling. While the aluminium casing cools two 40 mm fans work reliably and silently. Everything is as solid and safe as you might know it from the ICY BOX backplanes for the "big ones".

For 4 x 2.5 Inch SATA/SAS HDD/SSD

HDD Height up to 15 mm

Robust industrial design

Full aluminium/metal material

Support SATA III 6 Gbit/s

With Key Lock

Specifications:

Colour: Black

Material: Aluminium

Required space: 1 x 5.25 inch bay

Fan: 2 x 40 x 40 x 20 mm cooling fan

HDD size (inch): 4x2.5 inch

HDD height: 6 - 15 mm

HDD capacity: Unlimited

HDD interface: 4 x 2.5 inch SAS/SATA I/II/II

Host interface: 4 x SATA Data Connector 7Pin

Transfer rate: Up to 6 Gbit/s

Hot Swap: Yes

Plug & Play: Yes

Lock: Yes

Operating system: OS independent

Power connector: 1x 15pin SATA power

LED: Power and HDD Access

Packing content: 1x IB-2240SK, 2x keys, 28x screws, 1x short manual

Gross weight (incl. packing): 0.83 kg

Net weight: 0.70 kg

Dimension of packing box: 197x152x46 mm

Dimension of article: 181x146x42 mm

Package Contents

1 x Back Plane
